Product Information

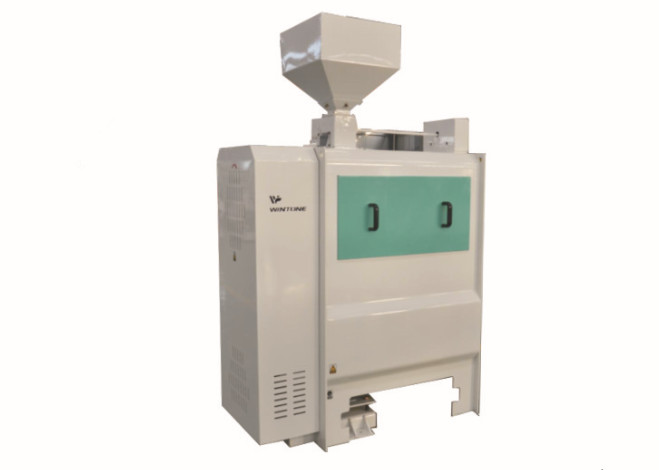

MTPS Pulse(Masoor) Seed Peeling Machine

Application

The machine is used in the peeling process for bean processing and primary and further peeling process for food processing enterprises.

MTPS Bean Peeling Machine can remove the bran of various beans, such as soybean, lentil, peas, mung bean, kidney bean, lupin beans, black eye beans, chickpea, etc.

Main equipment and components：

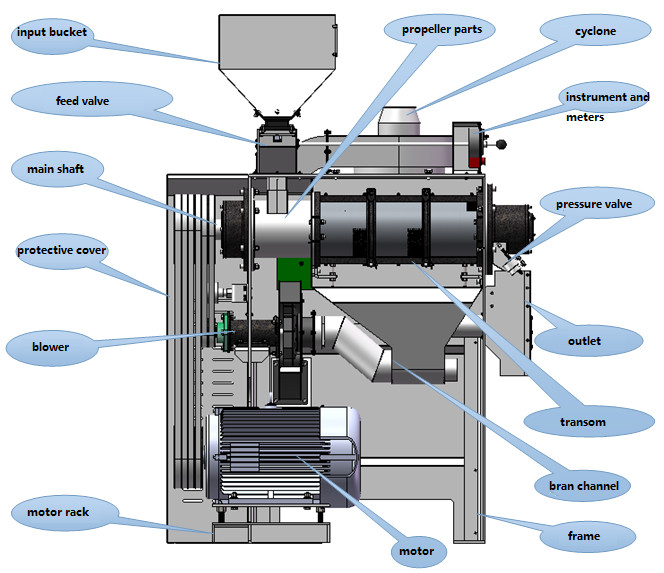

It can be used as the supporting equipment in bean processing technology or as the single equipment. MTPS bean bran removing machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.

Working Principle:

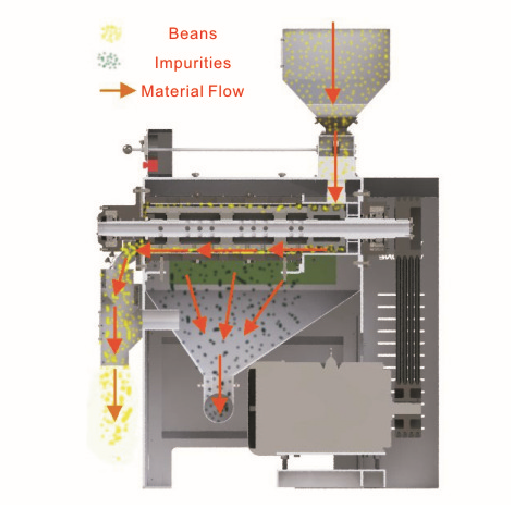

The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans bran continuously, which destroys the bonding strength between bean bran and kernels and makes bean bran separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.

Features and advantages:

1. Bean peeling machine can process red bean, kidney bean, soybean, mung bean, lentil ; it is suitable for different beans peeling when changed related technical parameter.

2. It has the aspiration and dust removal system outside, which ensures the best sanitary conditions.

3. MTPS bean fine peeling machine connects with the efficient aspiration system, which ensures the reliable discharging of bean bran. It has the powerful cooling system and ensures the high sanitation standard.

4. It is easily maintained and operated.

5. It has quick-replaceable sieve plate and other parts. The durable emery roller and less abrasion parts make the equipment easily operated and maintained.

Packaging & Delivery::

1. We will pack by the protect film inner, water-repellent plastic outside.

2. The wood packing is necessary if we send by less than a container.

3. The machine will be fixed by steel rope in the container. Make sure it is in good condition when it arrives

4. Model: MTPS-25D/B

5. Color: Customer demands

6. Weight:800kg

7. Port: Qingdao, Tianjin, Shanghai port

8. Delivery Time :20 days after payment

MTPS  Masoor dal peeling machine technical parameter:
