Pea grinder, or bean mill usually refers to a pea processing plant, which needs different machines to finish pea flour milling. And the main machine for the plant is pea milling machine. The products yield rate is adjustable.

Pea grinder technology function and features:
Most of the equipments of this plant have gained national new patents which ensure the continuous safe production of the plant.
This plant can produce pea kernels or pea flour respectively, or both of the products simultaneously.


1. Bean cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.
2. Bean color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.
3. Bean peeling section: it adopts peeling, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)
1）Peeling: it can peel the bean bran and separate and collect it by effective aspiration system;
2）Brushing: it can separate the micro bran and dust which adheres to the material surface.
4. Grading section: it adopts different screens and classify the material into different grades according to the size.
5. Bean kernel making and grits milling section: it adopts the technology of three peeling sections, one grits making section, grading and suspension.
1)Peeling section: it can peel the bean bran and separate and collect it by effective aspiration system and produce whole peeled kernels;
2) Bean grits making section: it uses fine bean grits machine and mill beans into bean grits;
3) Bean kernels and bean grits grading section: it adopts different screens and classifies bean kernels or bean grits into different grades according to the size.
4)Suspension: it separates bean bran by utilizing airflow according to different material gravity.
6. Bean flour milling section: it adopts the technology of burdening, several processes of grinding and screening and grading.
1）Burdening: it can mix different material according to different requirements for different products；
2）Grinding: it can grind or mill the beans into fine bean flour by the professional bean grinder;
3）Screening: it separates the bean flour.
Soy flour and grits enhance the nutrition and texture of products. Available in a variety of granulations, soy flour and grits have multiple uses, including extending the freshness and shelf-life of many foods.
7. Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.

Pea grinder design introduction:

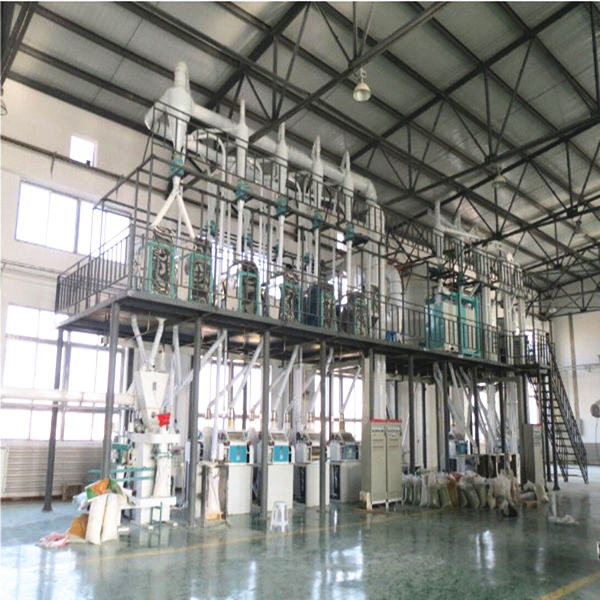

With breaking, cutting, peeling, rubbing of the material, the effect of grinding is achieved. This pea grinder is suitable for large, medium size bean processing plants. This technology can be applied in bean peeling, bean flour milling, wheat flour milling, buckwheat, millet, rice, sorghum and dried sweet potato milling and fine powder milling.
Raw grain moisture: ≤ 14%

Pea grinder main production index:
1) Bean kernel products structure and yield rate:
Big kernel yield rate: 85%
Broken kernel yield rate: 5%
Husk rate: 5-10% (depending on different species)
2) Bean kernel and flour products structure and yield rate:
Flour yield rate: 90-95%
Husk rate: 5-10% (depending on different species)
Other index:
A. Sand content: <0.02%
B. Magnetic metal content: <0.003/kg
C. Moisture content: <16%

Pea grinder is suitible to process all the following beans: soybean,broad bean,pea,mung bean,kidney bean,black soya bean,sword bean,pigeon pea,chickpea,lentil,cowpea,small red bean,butter bean,navy bean,phaseolus coccineus

Parameter for the whole pea processing plant (from cleaning, peeling, polishing, milling and packaging):
