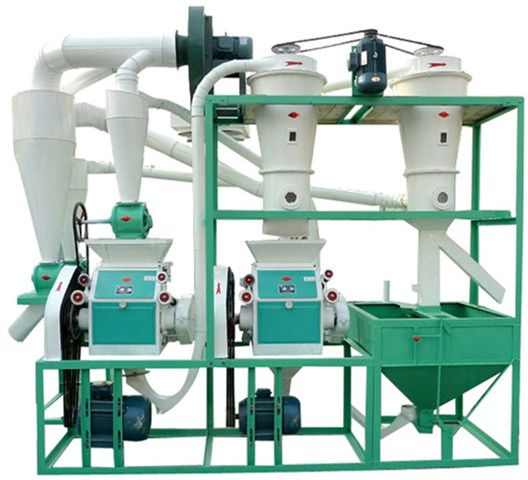

NF Series Pulses Grinding Machine
NF Series Pulses Grinding Machine can grind beans into fine beans flour, such as lentil flour, mung beans flour, soybean flour, peas flour, etc.
NF Series Pulses Grinding Machine Working Principle:
The moisture content of the unprocessed grain should be 13.5～14.5%. Start the blower and then start the grinder. When the Pulses Grinding Machine blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake.
When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.
NF Series Pulses Grinding Machine Advantages:
High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.
Pulses Grinding Machine Technical Parameter:
|
Model
|
Yield
（kg/h） |
Roller Specification（mm）
|
Fast Roller Speed（r/min）
|
Power
(kw) |
Weight
（kg） |
Outline Size
(mm) |
|
NF-2235
|
400-500
|
Ф220×350
|
650
|
15+3
|
1100
|
4000x1300x4200
|
|
NF-2240
|
500-550
|
Ф220×400
|
650
|
22+3
|
1250
|
4000x1500x4200
|
|
NF-2250
|
600-650
|
Ф220×500
|
650
|
30+3
|
1400
|
4000x1800x4200
|
