MTPS pulses skin peeling machine can process lentil, soybean, lupin beans, chickpeas, mung beans, peas and other pulses. MTPS Pulses Skin Peeling Machine can be used as the supporting equipment in pulses processing technology or as the single equipment. MTPS Pulses Skin Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.
The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans skin continuously, which destroys the bonding strength among bean bran, material skin and endosperm, and makes bean bran separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.
MTPS Pulses Skin Peeling Machine technical parameter: (Letter A means external air blower. Letter B means internally installed air blower)
|
Model |
Emery Roll Diameter (mm) |
Emery Roll Length (mm) |
Spindle Speed （r/min） |
Yield （t/h） |
Power （kW） |
Air Volume （m³/h） |
Size (L*W*H) (mm) |
|
MTPS-18D/A |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1370×700×1900 |
|
|
MTPS-18D/B |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1500-1800 |
1410×1220×2030 |
|
MTPS-25D/A |
Φ240 |
660 |
1050 |
2-3 |
30 |
1515×660×2100 |
|
|
MTPS-25D/B |
Φ240 |
660 |
1050 |
2-3 |
30 |
1800-2100 |
1515×1220×2100 |
Workshop Processing for Pulses Skin Peeling Machine :

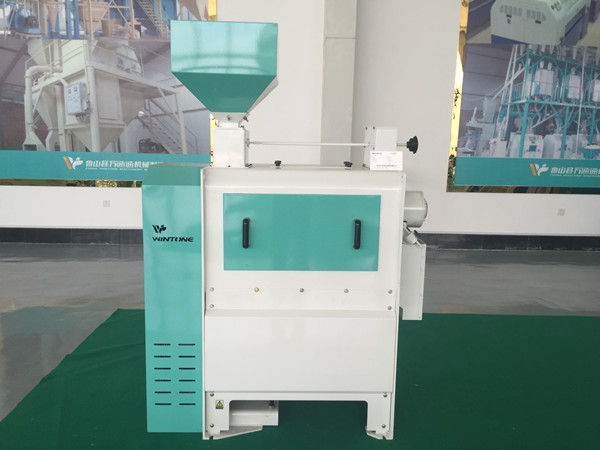

Shown at Exhibition Hall:
Pulses Skin Peeling Machine end products:
Peeled Lentil:
Peeled Mung Bean:
Peeled Chickpea:
Peeled Peas:
Peeled Soybean:
Application Overseas (Part) :
Canada 120T/Day Lentil Peeling Project:
24T/Day Mung Bean Peeling Line in Thailand:
2T/Hour Lentil Peeling Line in Russia:
2T/Hour Lentil Peeling Line in Kazakhstan:
1T/Hour Lentil Peeling Line in Ethiopia:
2T/Hour Lentil Peeling Line in Ethiopia:
Pakistan 20 Sets of Chickpea Peeling Machines Delivery:
