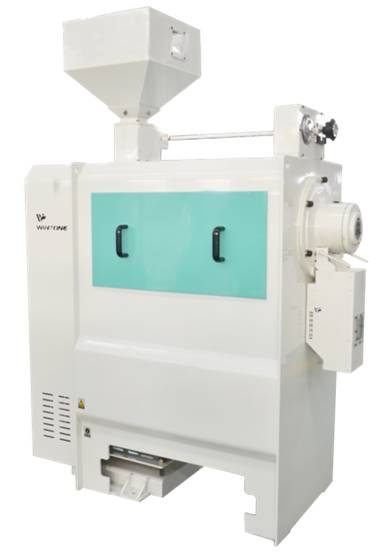

Oat Peeling Machine is used as the supporting equipment in oat processing technology or as the single equipment. Oat peeling machine has the outstanding features of high yield and low breakage rate. MTPS oat peeling and awn removing machine can remove oat bran and awn. It is the ideal supporting equipment in modern oat processing plants. It has the features of high yield and low breakage rate. VIDEO
Features:
★Axial inlet air design with strong air draft system, low temperature, good bran discharging capability.
★Toothed gear drive device for control of inlet plugboard, convenient and precise operation.
★Outlet is equipped with cleaning device for further decreasing the temperature
and cleaning the material.
★Special motor rack, compact structure, small dimension, easy adjustment, convenient maintenance.
★Air pressure monitor device to control negative pressure at a stable level in the machine.
Application:
The machine is mainly used for oat peeling in the oat processing factory.
Oat peeling machine technical parameter:
|
Model |
Emery Roll Diameter (mm) |
Emery Roll Length (mm) |
Spindle Speed （r/min） |
Yield （t/h） |
Power （kW） |
Air Volume （m³/h） |
Size (L*W*H) (mm) |
|
MTPS-25YM |
φ246 |
690 |
800 |
2～3 |
11/15 （6級- Grade 6） |
2200-2500 |
1450×800×1940 |
